5G NR Vector Signal Analysis

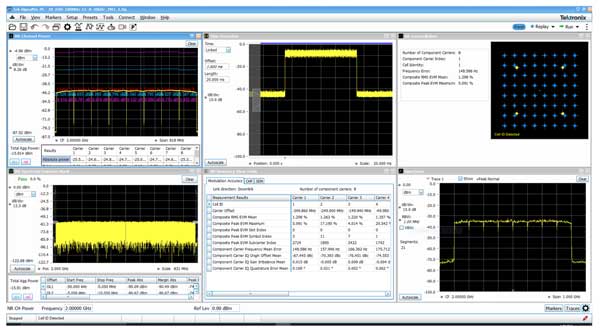

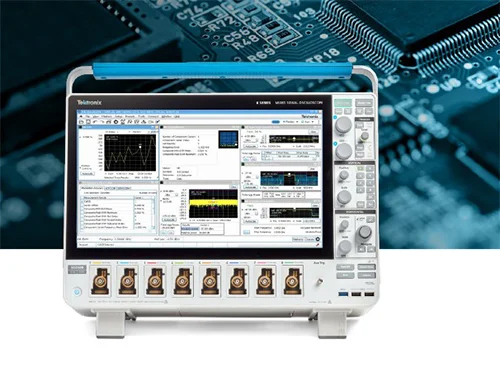

SignalVu software turns the 6 Series B MSO or DPO70000SX into wideband vector signal analyzers with a wide range of RF capabilities. And with the 5GNR plug-in, the system can make key 5G signal measurements, including:

Error Vector Magnitude (EVM)
Channel Power (CP)

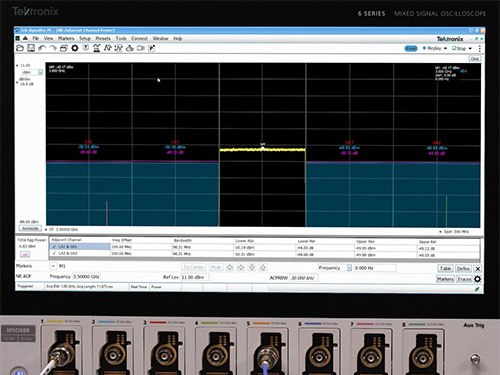

Adjacent Channel Power (ACPR)
Spurious Emission Mask (SEM)

In addition to viewing signals over time, these oscilloscopes also have extremely wide capture bandwidth versus traditional spectrum analyzers. The 6 Series B MSO is available with maximum frequency up to 10 GHz and can capture up to 2 GHz of instantaneous bandwidth. Its built-in downconverters provide fast, accurate results, and custom preamps deliver excellent noise performance and dynamic range. The DPO70000SX is available with bandwidth up to 70 GHz and can capture up to its full bandwidth, allowing it to capture FR2 signals in real time.


Application Overview	Application Overview	Application Overview
5G Validation & System Debug	5G New Radio Vector Signal Analysis	5G Over the Air Measurement

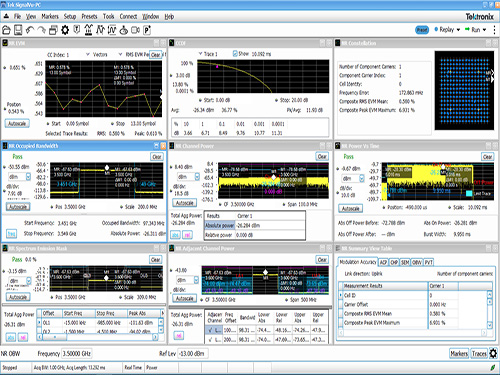

Learn how to perform multi-domain signal analysis of 5G base station and user equipment systems. See the benefits of using a mixed domain oscilloscope for analyzing RF amplifier performance.	See how you can simplify several 3GPP 5G New Radio transmitter tests. You’ll see how to verify transmitter characteristics including power, power dynamics, signal quality and RF emissions.	See how MIMO analysis of RF, analog and digital can be performed simultaneously for easy analysis and correlation between both the frequency and time domain.

Brochure	Whitepaper	Application Note
Re-Imagine 5G Measurements	5G NR Multi-Channel System Troubleshooting	Spurious Emission Measurement on 5G NR Base Station Transmitters and Receivers
Learn how our 5GNR Signal Analysis Package enables wideband new radio measurements with Tektronix oscilloscopes.	Learn about the advantages of using single instrument for analyzing complex 5G systems where digital, analog, and RF signals interact	The 5G New Radio (NR) refreshed 3GPP specifications based on LTE (long term evolution) by providing faster speed, lower latency, and more spectrum bands to increase network capacity and coverage.
