5G System Troubleshooting

Synchronized, multi-channel spectrum analysis and time domain waveforms speed 5G troubleshooting.

5G systems rely on a symphony of digital, analog and RF signals. Being able to analyze signals across multiple domains is critical to finding interference, glitches, spurs, drop-outs, and other errors.

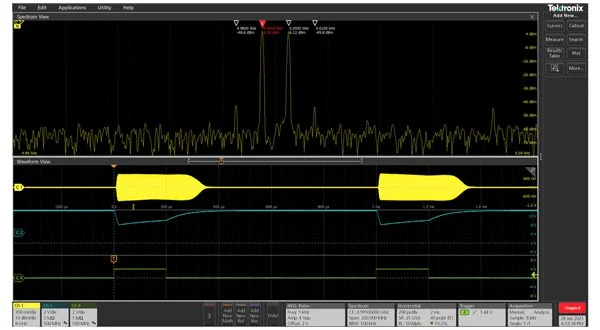

In 4, 5 and 6 Series MSO oscilloscopes, behind each input is a 12-bit ADC inside a custom ASIC. Each ADC sends high-speed digitized data down two paths. This approach enables independent control of the time domain and frequency domain acquisitions, allowing optimization of both waveform and spectrum views of a given signal. This unique Spectrum View feature enables synchronized measurements across time, RF and digital domains, on up to 8 channels.


Application Overview	Application Overview	Application Overview
5G Validation & System Debug	5G New Radio Vector Signal Analysis	5G Over the Air Measurement
Learn how to perform multi-domain signal analysis of 5G base station and user equipment systems. See the benefits of using a mixed domain oscilloscope for analyzing RF amplifier performance.	See how you can simplify several 3GPP 5G New Radio transmitter tests. You’ll see how to verify transmitter characteristics including power, power dynamics, signal quality and RF emissions.	See how MIMO analysis of RF, analog and digital can be performed simultaneously for easy analysis and correlation between both the frequency and time domain.

Brochure	Whitepaper	Application Note
Re-Imagine 5G Measurements	5G NR Multi-Channel System Troubleshooting	Spurious Emission Measurement on 5G NR Base Station Transmitters and Receivers
Learn how our 5GNR Signal Analysis Package enables wideband new radio measurements with Tektronix oscilloscopes.	Learn about the advantages of using single instrument for analyzing complex 5G systems where digital, analog, and RF signals interact	The 5G New Radio (NR) refreshed 3GPP specifications based on LTE (long term evolution) by providing faster speed, lower latency, and more spectrum bands to increase network capacity and coverage.
