DDR test challenges in the era of 5G technology

Adoption of 5G is driving growth in a variety of exciting technologies – from augmented reality (AR) and artificial intelligence (AI) to cloud computing and IoT. All of these rely on more data being both stored and accessed more quickly, hence the importance of fifth generation memory (DDR5). DDR5 improves bandwidth, density and channel efficiency, but higher data transfer rates and faster signal speeds lead to complex designs that push the boundaries of signal integrity and require higher performance measurements for DDR compliance test, DDR debug and validation.

DDR Memory Testing Solutions

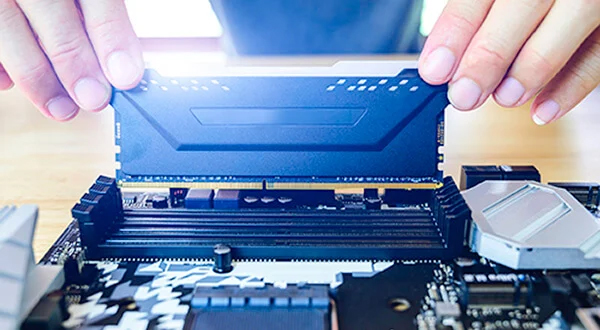

DDR5

The TekExpress DDR5 Transmitter solution conforms to the JEDEC memory standard requirements so you can spend more time validating the memory design and less time collecting the data. DDR5 test automation software option is available on MSO / DPO70000 Mixed Signal Oscilloscopes and DPO70000SX ATI Performance Oscilloscopes.

Key Features:

DDR DFE standalone application

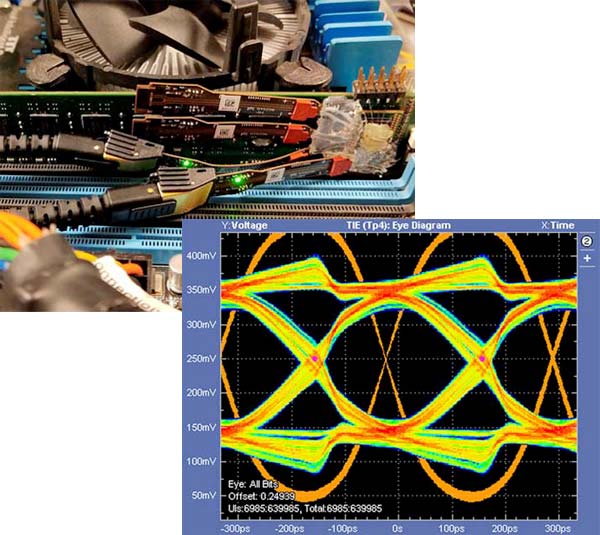

DFE analysis on the bursty DDR traffic and write data eye measurements
De-embedding with SDLA
Up to 8400M T/s in user defined mode

Learn More:

TekExpress DDR5 Transmitter datasheet View DDR5 Brochure

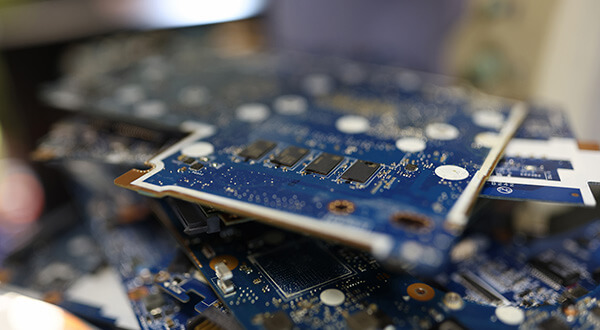

LPDDR5

The TekExpress LPDDR5 Transmitter solution meets the latest JEDEC memory standard requirements so you can confidently validate LPDDR5 DRAM designs at the maximum data rates. Supported on MSO / DPO70000 Mixed Signal Oscilloscopes and DPO70000SX ATI Performance Oscilloscopes.

Key Features:

Automated read and write burst separation
De-embedding techniques using SDLA
Faster times for a faster time to market
Multiple Burst Detection Method supported - Read and Write, Write Only, Read Only, and Visual Search
Hexagon shape mask and margin analysis for Write Data, CA, CS Eye measurement

Learn More:

LPDDR5 Transmitter datasheet View LPDDR5 Brochure

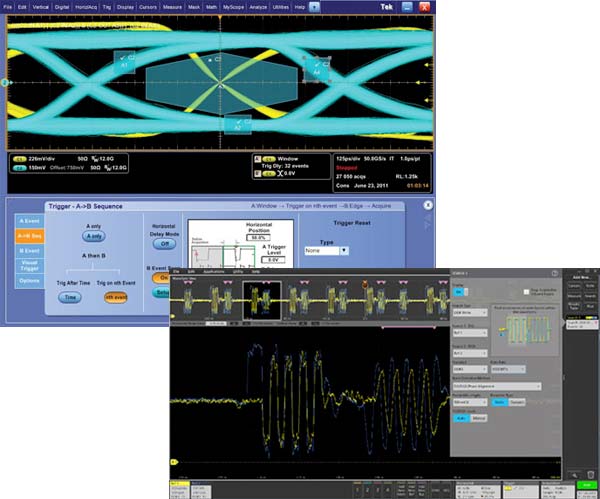

DDR/LPDDR, Generations 3 and 4

Fast data rates, flexibility and proven technology make previous generations of DDR4, LPDDR4, DDR3 and LPDDR3 DRAMs extremely common in wearables, medical and IoT applications.

DDR4/LPDDR4 and DDR3/LPDDR3 test automation software is available for use with MSO / DPO70000 Mixed Signal Oscilloscopes and DPO70000SX ATI Performance Oscilloscopes. DDR3/LPDDR3 automation software is also available for use with Tektronix 6 Series B MSO Mixed Signal Oscilloscopes.
